BodenWarme Underfloor Heating Kit For Laminate / Wood With Black dSTAT Thermostat

Step into a world of warmth and comfort with the BodenWärme Electric Underwood Heating Kit, designed exclusively for laminate and floating engineered wood floors. Designed to provide an even temperature to every corner of your room while preventing hot spots and cold spots from occurring, a common issue with traditional radiators, the kit also includes a dSTAT thermostat with a chic black finish, allowing you to control your heating system with ease. So, throw away those slippers and prepare for year-round comfort.

Operating at AC230V +/-10% 50/60Hz, the system provides efficient year-round comfort. The heating mat's dual-core wire technology simplifies connectivity with a single connection point, boasting an ultra-thin 1mm wire that discreetly integrates into your floor, keeping the increase in height at a minimum. The system's Fluoropolymer insulation and aluminium mat composition promise a heating solution that stands the test of time. For peace of mind, the mats feature a lifetime guarantee, with separate warranties for the thermostat.

Features & Benefits: BodenWarme Underfloor Heating Kit For Laminate / Wood With Black dSTAT Thermostat

• Ensures even room temperature, eliminating hot spots and cold spots
• Includes dSTAT thermostat with chic black finish for easy heating control
• Operates at AC230V +/-10% 50/60Hz, providing efficient year-round comfort
• Dual-core wire technology for simplified connectivity and minimal height increase
• Fluoropolymer insulation and aluminium mat composition for durability
• Lifetime guarantee for heating mats; separate warranty for the thermostat
• Touchscreen and adaptive learning for tailored performance
• Key Lock function prevents unintentional adjustments

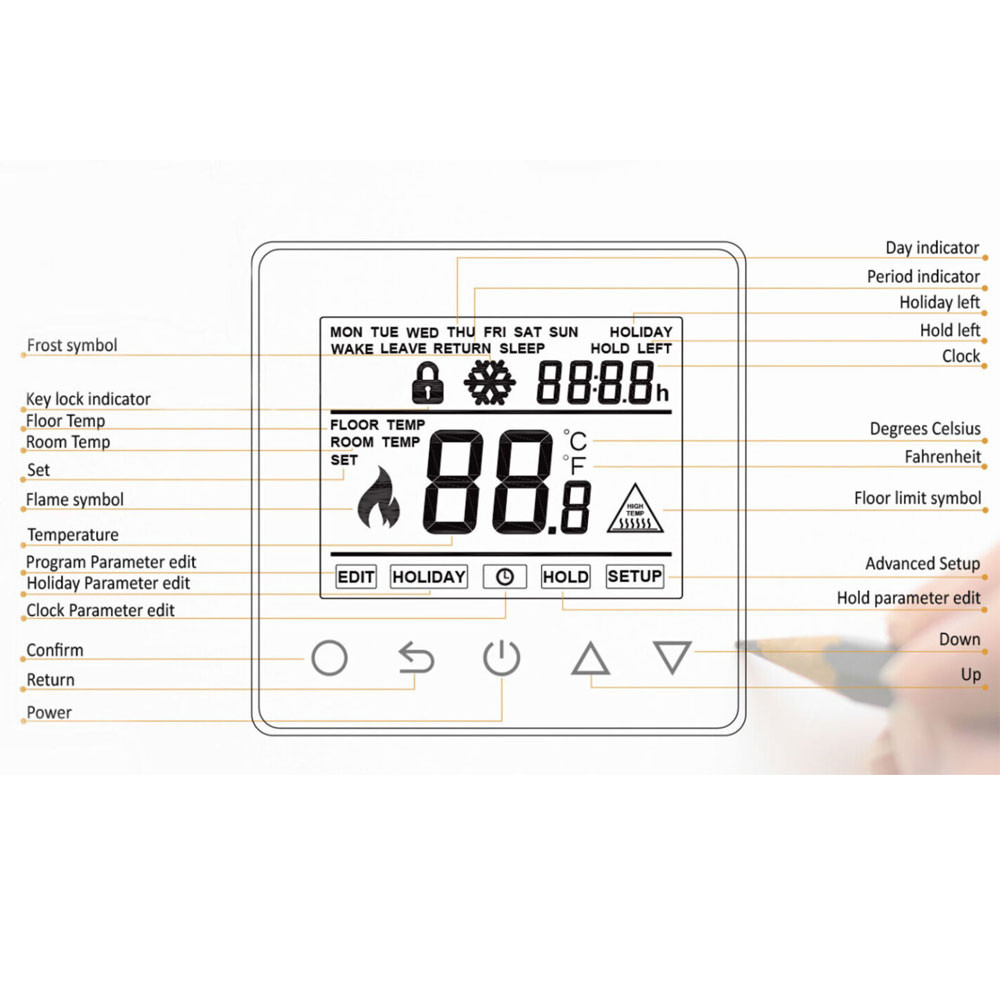

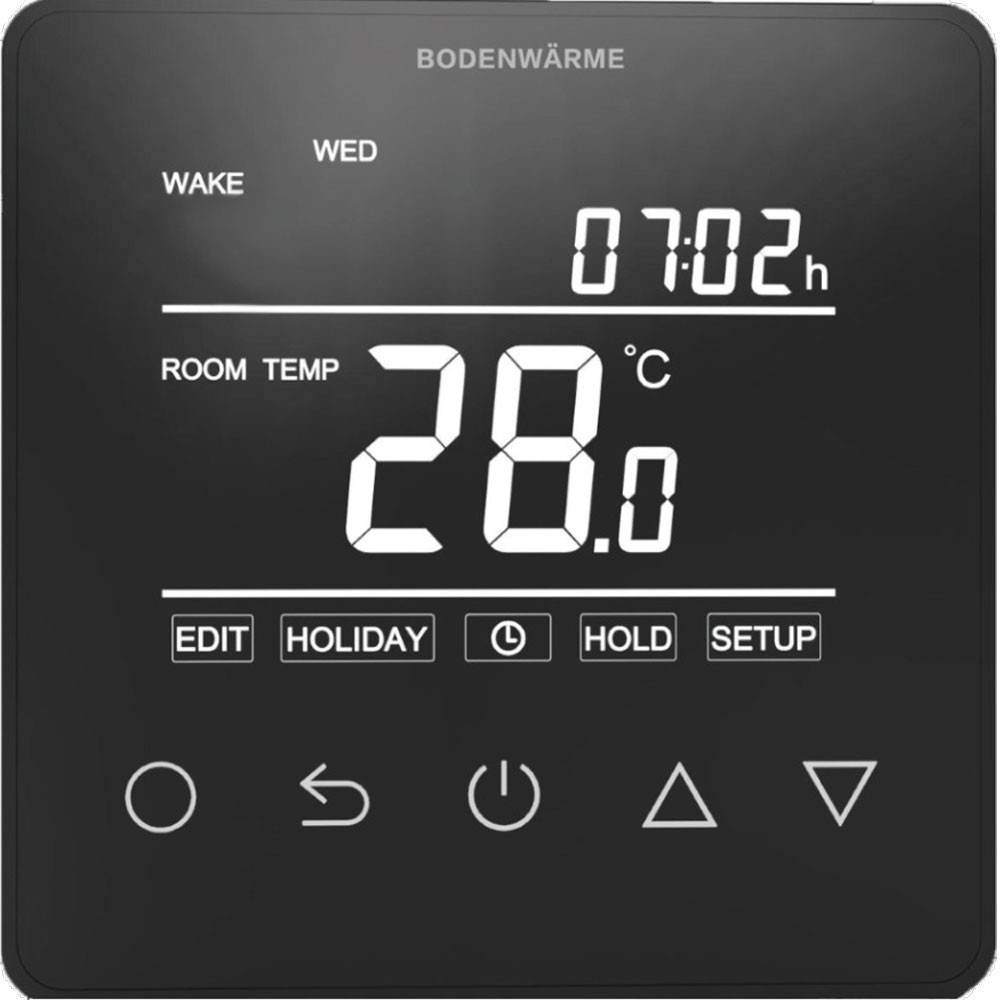

As for the dSTAT thermostat, it showcases a sleek, modern design with a gloss black fascia that will blend seamlessly with most contemporary interiors. Its sensitive touchscreen enhances usability, and the adaptive learning feature allows it to tailor its performance to the unique properties of your home.

With a full seven days per week programming and holiday functionality, you have complete control over your heating schedule. The Key Lock function ensures that your carefully set programs remain unchanged, preventing unintentional adjustments by small children or brushing past the controls accidentally.

How do I calculate the correct size of BodenWärme heating kit?

To calculate which kit size is right for your project, you will first need to work out the area of the whole floor space by multiplying the length of the floor by the width. Once this is done, you should then subtract any fixed furniture from the area with a clearance of less than 50mm above the floor. This will eradicate the risk of causing hot spots in your room. When you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between cables and around the perimeter of the room.

Kit Contents

• BodenWärme's 140w/m² foil encased Underfloor Heating Mat designed for use under laminate and wood floors
• A dSTAT Electric Underfloor Thermostat in Black
• A Floor Temperature Sensor with 3m Cable and Flexible Conduit
• A Comprehensive Installation Manual
• An aluminium joint tape
• A Lifetime Warranty

BodenWärme laminate and wood heating mat features:

• Suitable for wood and laminate floors, the heating mat includes a dual-core wire with a single connection point to ease installation and enhance compatibility. The rugged fluoropolymer heating element insulation increases lifespan and durability while the aluminium mat composition allows for a consistent heat distribution. So that floor height increases are marginal, it also features an ultra-thin encapsulated 1mm wire. Lifetime manufacturer-backed warranties, full CE certifications and ROHS compliance for guaranteed safety are provided.

Standards & Certification

• RoHS (Restriction of Hazardous Substances Directive) Compliant
• CE Certified

Please note:

• For optimal performance, it is essential to pair your BodenWärme under laminate heating mats with either the specified BodenWärme 5mm XPS underlay insulation or an equivalent soft XPS underlay expressly recommended for electric under laminate heating, and approved accordingly.
• The maximum total size of 140w/m² BodenWärme laminate and wood heating that a single thermostat can control is 24m². Should you require to cover an area greater than 24m², the area should be divided into separate zones and controlled via multiple thermostats.
• As with all electrical projects governed by Part P regulations, a certified electrician must undertake all mains electrical connections.
• The heating must be protected by a 30 Amp Residual Current Device (30mA RCD), protecting against electric shock. This can be situated within the consumer unit or via a dedicated fused spur.
• You should also ensure that the total current of your heating system does not surpass the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13 Amp, and you can take an electrical feed via a single 13 Amp fused spur.
