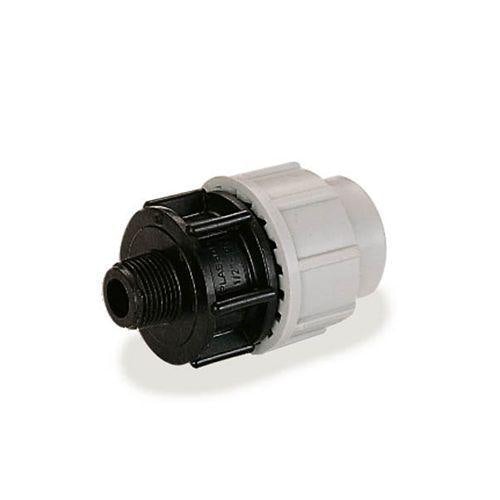

Plasson Male Adaptor BSP Thread - 50mm x 1 1/2''

Name: Plasson Male Adaptor BSP Thread - 50mm x 1 1/2''
Brand: Plasson
SKU: 7020G50
Price: 16.42 GBP
Availability: InStock

Code:

7020G50

Brand:

Plasson

This Plasson 50mm x 1 1/2-inch Male Adaptor BSP Thread is part of their mechanical range of fittings. The body of this adaptor is high-grade copolymer polypropylene, and it comes with the necessary NBR seal, polyacetal slip ring and high-grade copolymer polypropylene nut. The m... Read More

View full product details

View questions about this product

£16.42 Incl. VAT

Earn points

Est. Delivery: 1-2 Working Days

Shipping costs displayed in basket.

For delivery Tuesday, Nov 26th - order in:

days hrs mins secs

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Emma Shakespeare

Description

The mechanical range easily connects PE pipes to deliver cold water and fluids. Products are utilised across several urban and inter-urban infrastructures, as well as mining, landscape, industrial framing, and optical fibre duct systems. With a water pressure rating of PN 16, this Male Adaptor BSP Thread is tapered and can withstand working temperatures of sub-zero.

Features & Benefits: Plasson Male Adaptor BSP Thread - 50mm x 1 1/2''

50mm diameter and 1 1/2-inch outlet
Tapered male thread
Features an NBR seal, a high-grade copolymer polypropylene nut and a polyacetal split ring
Mechanical range includes valves for flow regulation
Body consists of high-grade copolymer polypropylene
Suited to conveying cold water and fluids and connecting PE pipes
PN 16 water pressure rated

Standards & Certification

ISO 17885 for Water Applications, AS/NZS 4129, ISO 7/1, BS 21, DIN 2999, UNI 9561, NEN 3258, AS 1722, DIN 8076

Please note:

Male threads are tapered, and female threads are parallel.
As standard, polyacetal split rings and NBR O-rings are supplied and are suitable for water. CPVC split rings and EPDM or FPM O-rings and seals are available. For aggressive chemical applications, it is recommended the end user tests suitability.
The maximum operating temperature for fittings and valves is the same as polyethylene pipe. Not intended for use in hot water applications but withstands sub-zero temperatures.
PTFE tape is advised in threaded connections.
